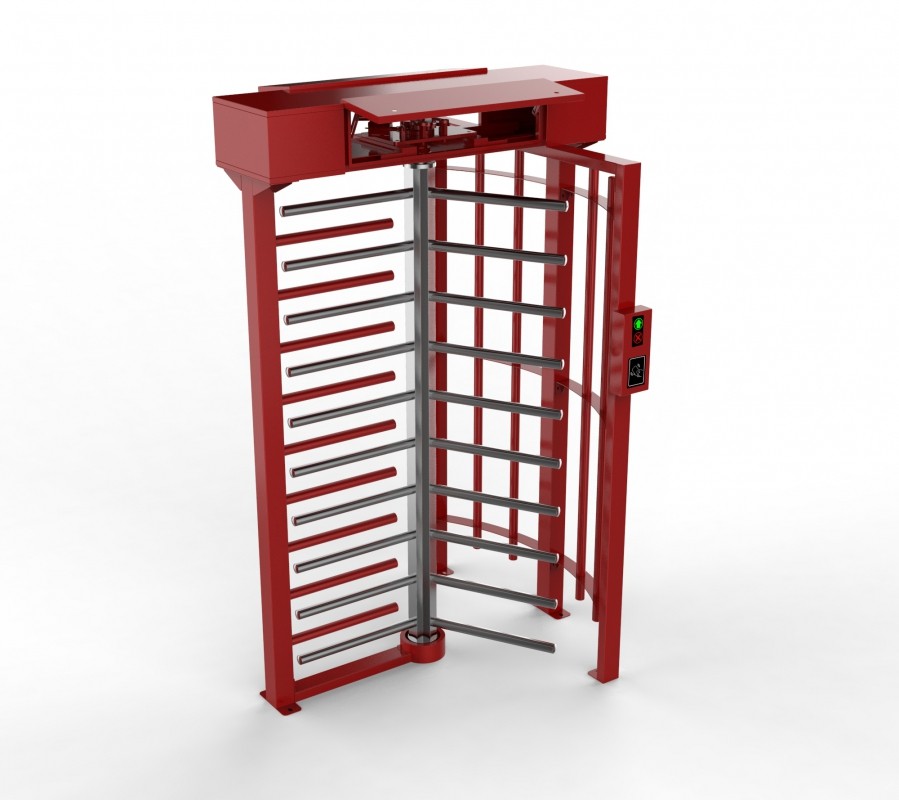

Avax B50 Painted Full-Height Turnstile

Turnstile Body: The body is made of sheet steel coated with electrostatic paint.
Power Specifications: Operates with 100–240 V AC power input.
Power Consumption: Full-height turnstile consumes 60 watts.
Operating Temperature: Functions reliably between -30°C and +80°C.
Turnstile Dimensions: 1400 mm x 1200 mm x 2230 mm
Installed Weight: 160 kg
System: This microprocessor-controlled turnstile operates bi-directionally and allows one person to pass at a time. A data output is available on the exit side and can be transmitted digitally or directly to a computer. In case of power failure, it automatically switches to free passage mode.
Full-Height Turnstile Control: Easily integrates with access control units and other peripheral devices. A single computer can control up to 256 turnstiles. Passage can be triggered via 3–50 V DC pulse, dry contact, CMOS, TTL, or computer control through RS232, RS422, RS485.
Emergency Alarm Mode: When connected to security systems, it switches to free-pass mode during fire, earthquake, or emergency situations.
Indicator: Equipped with a three-light indicator. When ready, the green arrow flashes. When access is granted, the green arrow stays solid. During passage, a red “X” appears on the opposite side to indicate restricted passage.
Additional Features: Power supply conditions can be customized according to requirements.
Unique Design: Ensures silent and smooth passage, offering a decorative and modern appearance.
Warranty Period: Covered by a 2-year warranty.
Applications: Customizable body color and special entry-exit effects are available.
