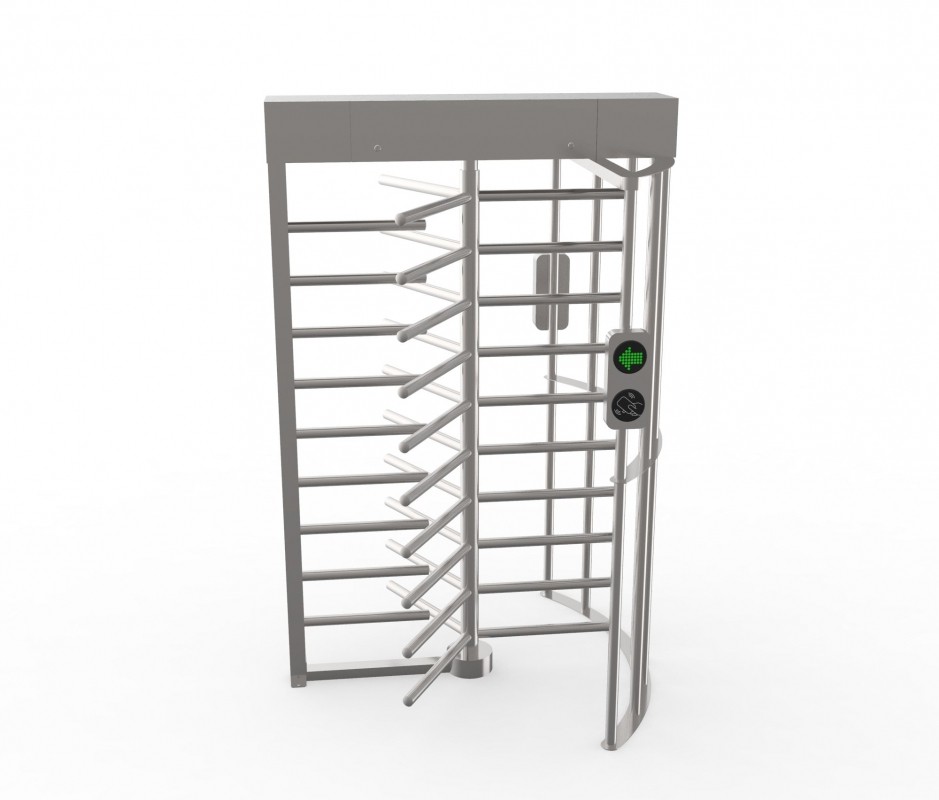

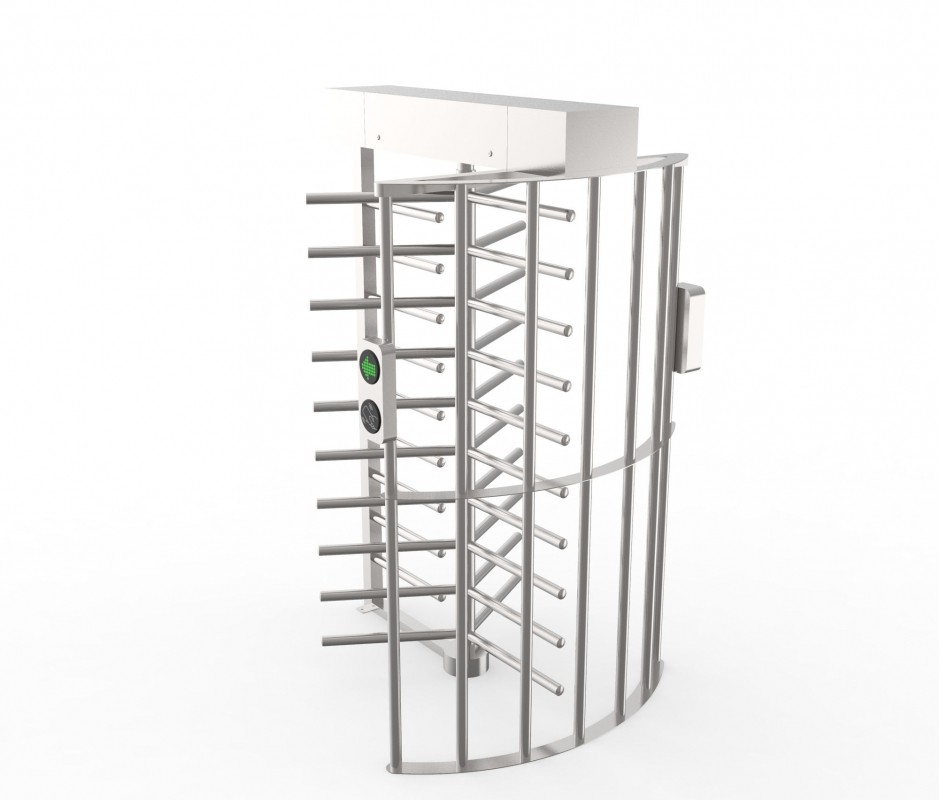

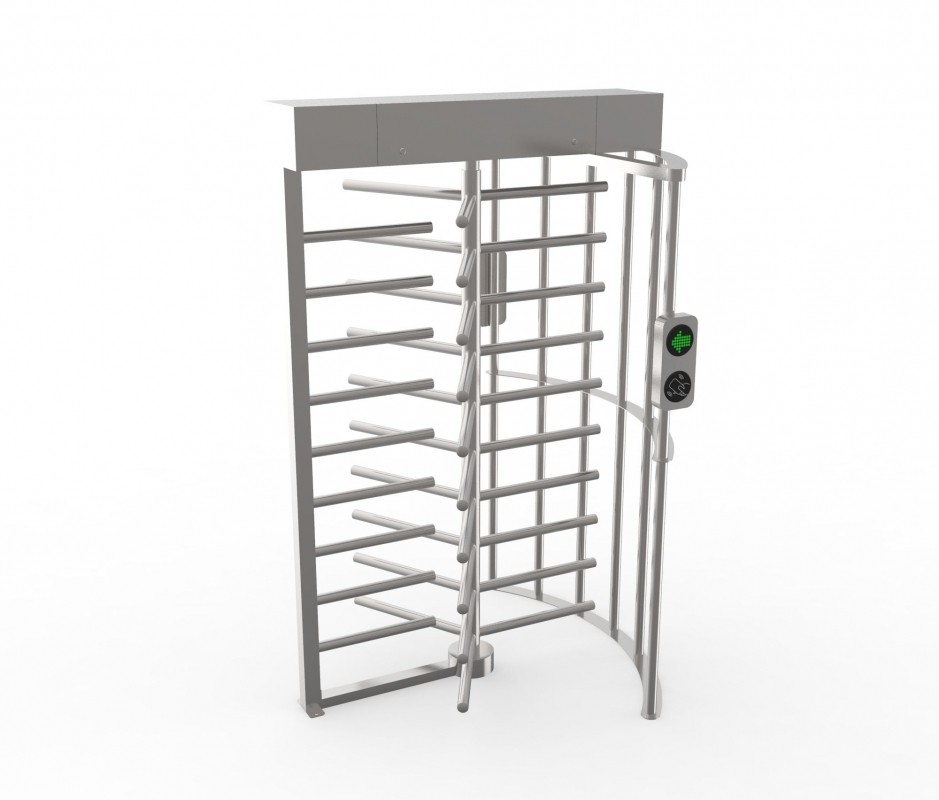

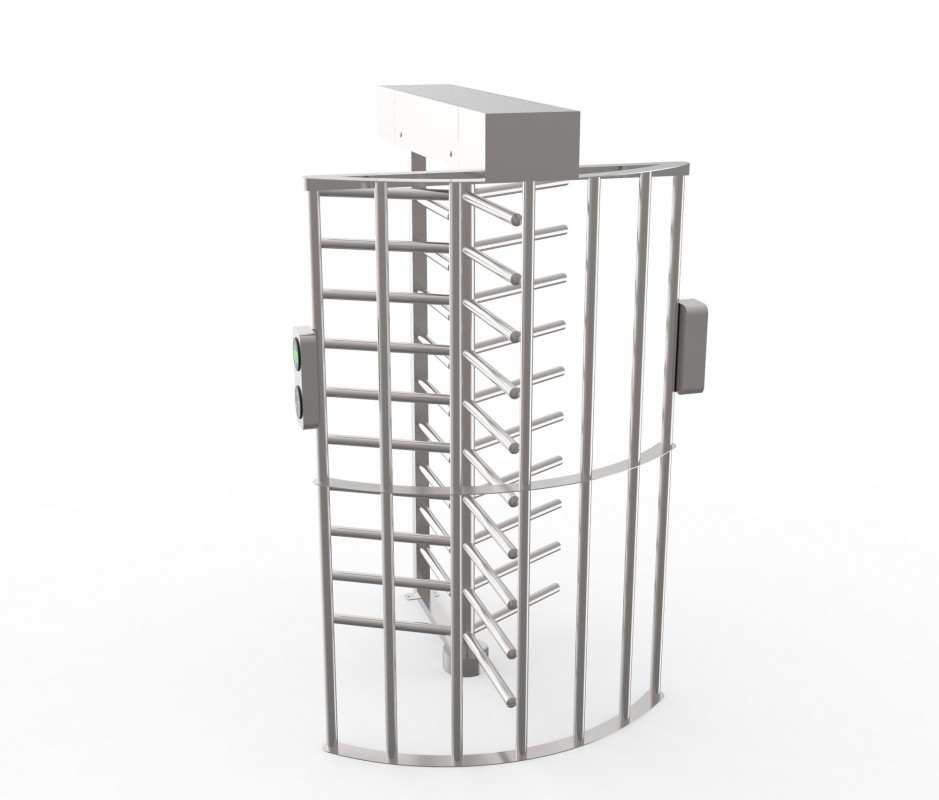

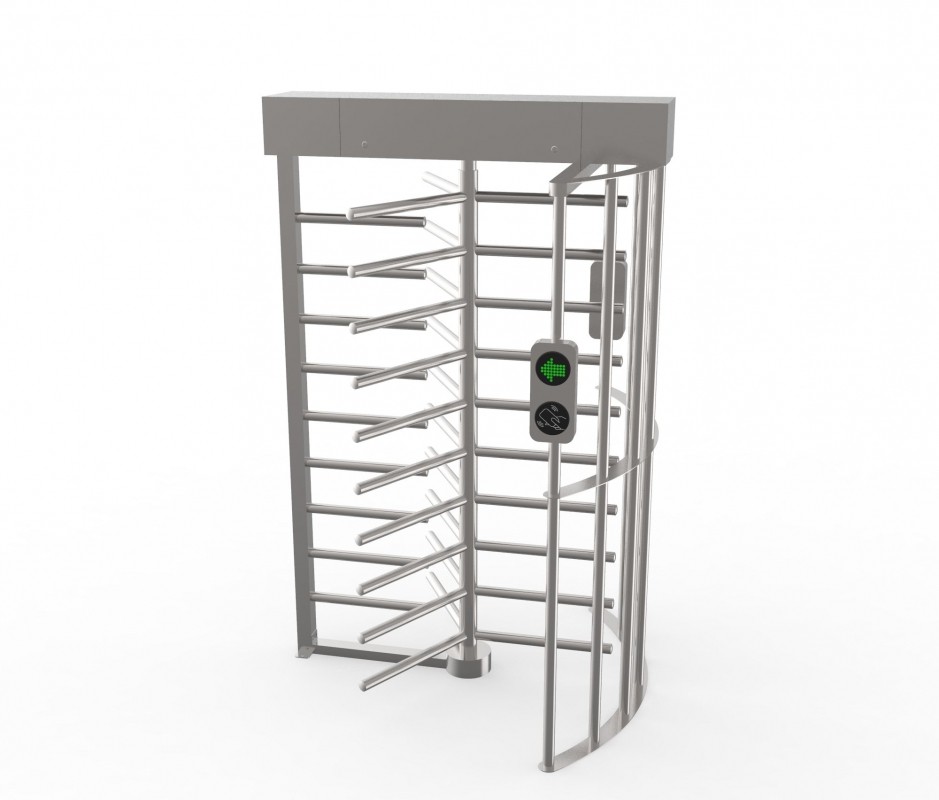

Avax P54 Full Height Stainless Steel Turnstile

PRODUCT CODE: P54

Body: Constructed from 304 stainless steel.
Power Supply: Operates on 100–240 V AC.
Power Consumption: 60 watts.
Operating Temperature: –30°C to +80°C.
Turnstile Dimensions: 1400 mm × 1200 mm × 2200 mm
Installed Weight: 160 kg
Turnstile System:

Microprocessor-controlled.
Bi-directional passage operation.
Allows the passage of only one person at a time.
Data output available after each passage (digital or direct PC transmission).
Automatically switches to free-pass mode during power outages.

Control System:

Easily integrates with access control units and peripheral devices.
A single computer can control up to 256 turnstiles.
Supported trigger signals: 3–50 V DC pulse, dry contact, CMOS, TTL, RS232, RS422, RS485.

Emergency Mode:

Automatically activates free-pass mode in case of fire, earthquake, or emergency.

Indicator:

Three-light indicator system:
- Green arrow blinking – ready.
- Green arrow solid – passage granted.
- Red “X” – passage from the opposite direction prohibited.

Additional Features:

Optional customized power input upon request.
Smooth and silent rotation.

Design:

Durable, aesthetic and modern appearance.

Warranty: 2 years.
