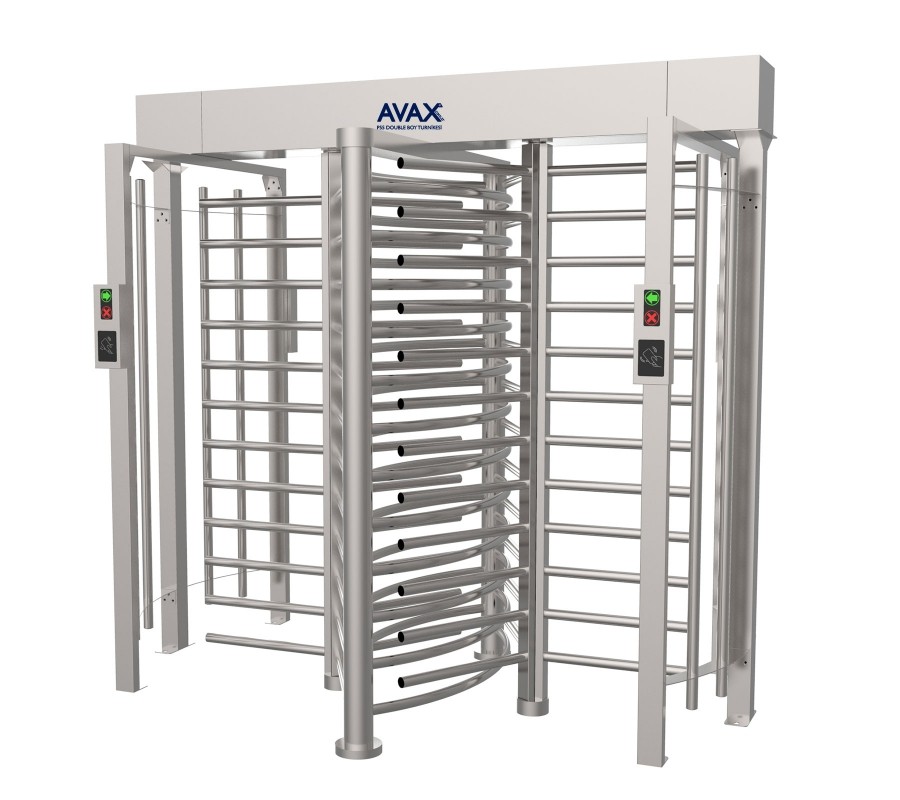

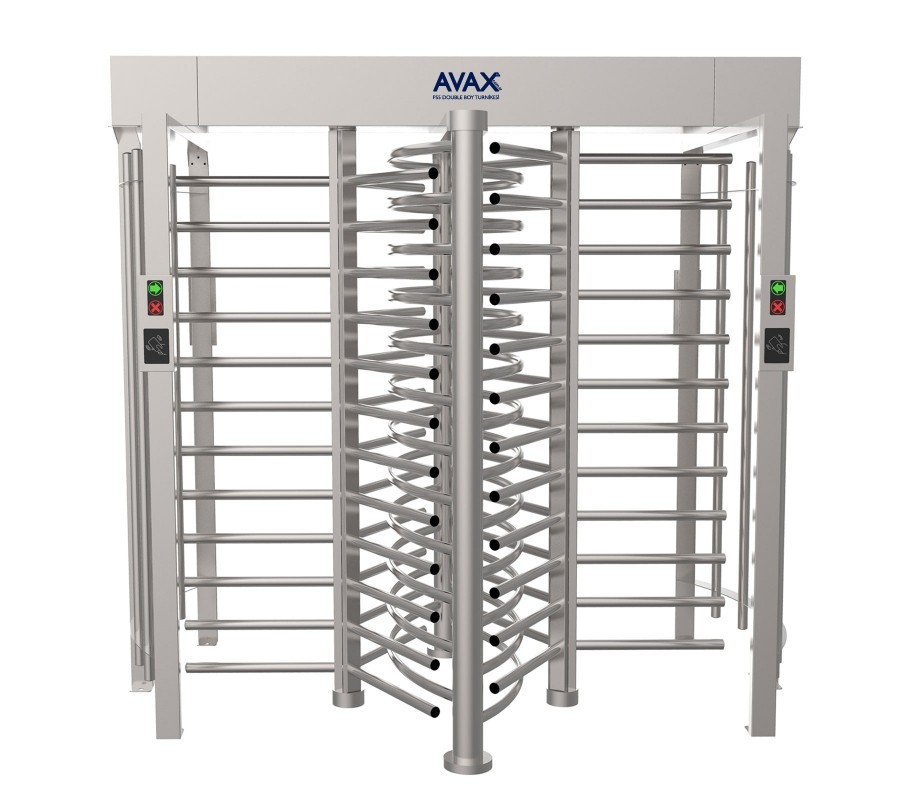

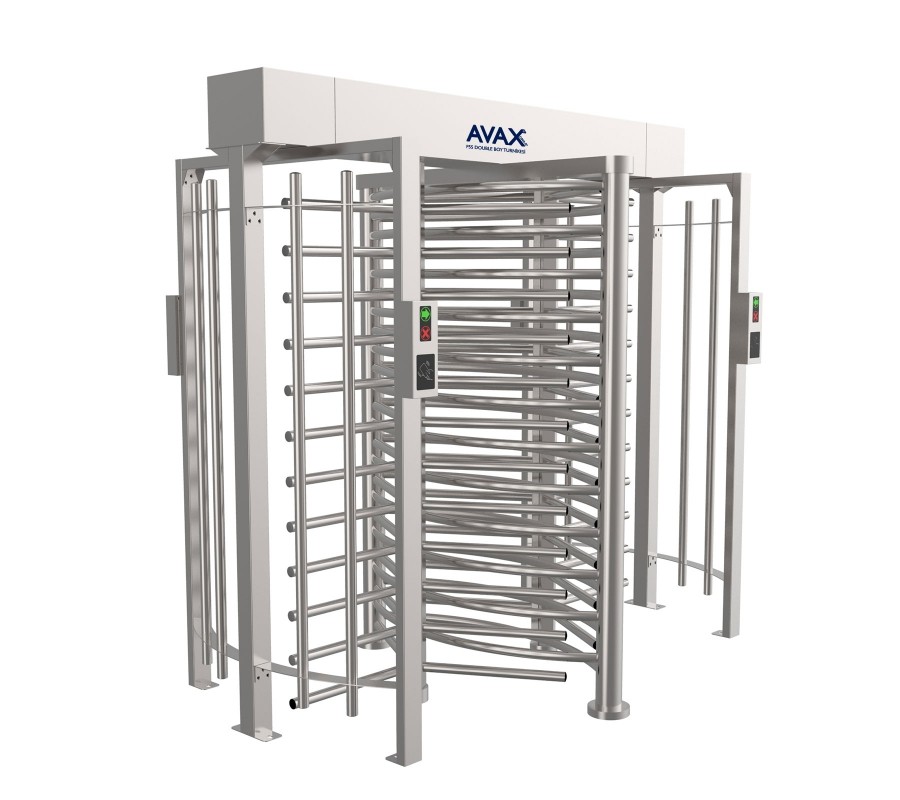

AVAX P55 DOUBLE

Body: Made of 304-grade stainless steel.
Power Specifications: Operates on 100–240 V AC.
Power Consumption: 60 watts.
Operating Temperature: From -30°C to +80°C.
Turnstile Dimensions: 1400 mm × 1200 mm × 2230 mm
Installed Weight: 160 kg
Turnstile System:

• Microprocessor-controlled.

• Bi-directional passage control.

• Allows only one person per passage.

• Provides data output after each passage (digital or direct PC connection).

• Automatically switches to free-pass mode during power outages.

Control System:

• Easily integrates with access control panels and peripheral units.

• A single computer can control up to 256 turnstiles.

• Supports trigger signals: 3–50 V DC pulse, dry contact, CMOS, TTL, RS232, RS422, RS485.

Emergency Mode:

• Automatically switches to free-pass mode during fire, earthquake, or any emergency.

Indicator:

• Three-light indicator system:

  • Green arrow blinking – ready for passage.

  • Green arrow solid – passage granted.

  • Red “X” – passage from opposite direction is prohibited.

Extra Features:

• Power supply customization available on request.

• DOUBLE version includes independent control for both sides.

Design:

• Smooth and silent rotation system.

• Elegant and decorative design.

Warranty: 2 years.
