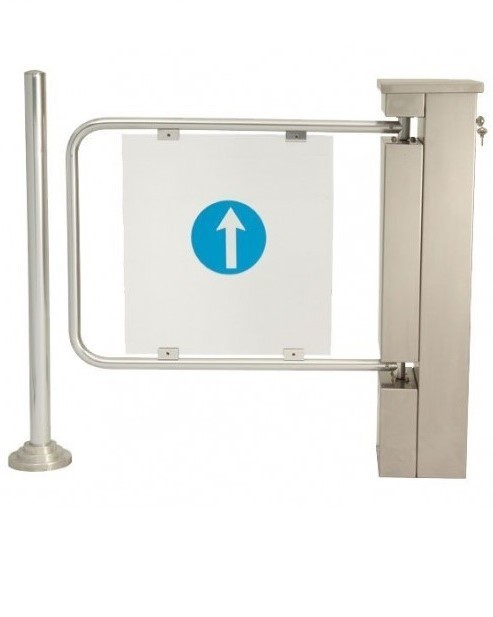

AVAX Wide-arm VIP turnstile / 90 cm arm length

Power Consumption: Operates between 100–240 V AC.
Energy Use: Consumes 60 watts.
Operating Temperature: Works reliably between -20°C and +50°C.
Dimensions: 240 mm × 260 mm × 940 mm
Arm: Arm length is 90 cm.

Smart Arm: Detects physical contact during forward and backward movement and responds accordingly.

System: Microprocessor-controlled, supports bi-directional passage. Provides data output in the passing direction. Output can be digital or sent directly to a computer. Switches to free-pass mode automatically during power outages.

Control: Can connect to all access control units and peripherals. Passage triggering is possible via 3–50 V DC pulse, CMOS, TTL, Rs485, Rs422, or Rs232. One computer can manage 32 or more turnstiles.

Safety Sensors: If a person stands in front of the arm, movement is blocked even if triggered. When passage is complete, the stored closing action is performed.

Button Control: Can operate with single or double-button control. Single button toggles open/close.

Timer Control: Can automatically close after a preset time.

Lock: Electromagnetic locking mechanism controlled by microprocessor.

Emergency Mode: Connects to alarm systems and switches to free passage during emergencies such as fire or earthquake.

Optional Indicator: Red “X” for no entry; green arrow blinks when ready and stays solid during passage.

Optional Remote Control: Supports keyless or button-type remotes. Keyless remote opens turnstile automatically within 3 meters. Up to 500 remotes can be assigned.

Extra Features: Custom power options and additional features upon request.

Design: Smooth, silent operation with a decorative appearance.

Warranty: 2 years.

Technical Support: Provided in Turkey, TRNC, Balkans, and Turkic Republics.

Certification: TSEK, ISO 9001, ISO 2000.

Application: Custom body color available; sound and light signals can be added.
