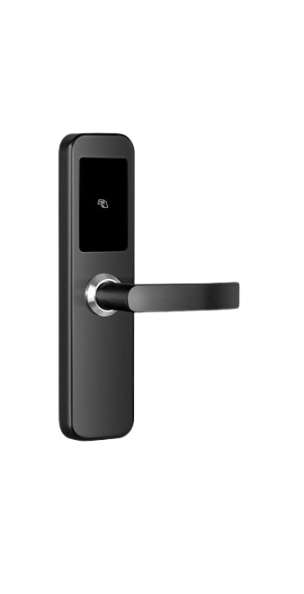

JYC-3058 Hotel Lock System
PRODUCT CODE:
JYC-3058
| material | 304 stainless steel |
| Language type | Simplified Chinese, Traditional Chinese, English, French, Greek, Portuguese, Russian, German, Turkish |
| Card specification | M1 high frequency card, S50 MIFARE 13.56HZ |
| Opening mode | Bluetooth unlock + card unlock +NFC unlock +APP unlock + mechanical key |
| Lock mode | The door locks automatically |
| Supporting software | All the locks, all the hotels |
| Operating temperature | - 20℃- + 60℃ |
| Relative humidity | 20RH—95RH |
| Operating voltage | DC6V |
| Alarm voltage | 4.1 V |
| Start-up time | 0.5 S |
| Static current | 20uA |
| Dynamic current | 180mA |
| Use power | 4 1.5V alkaline batteries |
| Battery life | 10 to 12 months |
| Lock body size | Standard with small 50 lock body (various specifications) |
| frequency | 13.56 Khz |
| Unlocking record | The last 224 door opening records can be recorded (992 records can be customized) |
| MCU | TI, a USA company |
| Net weight | 3.2KG |
| Size | 250x62x25mm |
| Inner box size | 36.5*20*13CM |
| Mortise | 5050 ( standard), optional: 50 60 70、 5050、5572、6085 |
