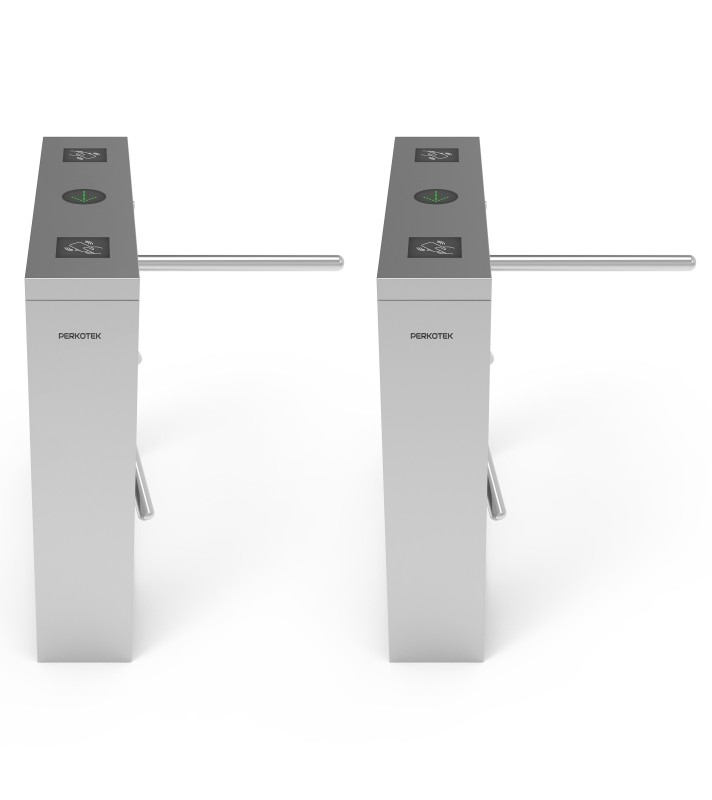

PERKOTEK S250 Turnstile with a Dropping Arm

PRODUCT CODE: S250

Body: The chassis and arms are manufactured from stainless steel.
Drop Arm: In case of power failure or emergency, the automatic drop-arm mechanism enables quick evacuation.
LED Indicator: The top LED panel displays passage directions with arrow indicators.
Top Cover: Dual-hinged, lockable top cover prevents unauthorized access to internal components.
Rotor System: Three-arm rotor with a 120° rotation structure.
Bi-Directional Passage: Supports controlled or free passage in both directions.
Anti-Tailgating: A special cam mechanism prevents unauthorized or tailgate passage.
Continuous Operation: Built with industrial components for reliable 24/7 operation.
Smart Trigger: Can receive authorization signals from biometric devices — vein scanners, facial recognition, fingerprint readers and card readers.
Safety Trigger: Can accept signals from emergency systems such as flood, fire and seismic alarm panels.
Security: Equipped with a strong motor and locking mechanism to prevent unauthorized access.
Manual Trigger: After opening the locked cover, manual control buttons are accessible for granting passage in both directions.
Electronic Board: All electronic circuits use SMD surface-mount technology; all inputs are optocoupler-isolated.
Reader Slot: The upper slot simplifies mounting of biometric readers; if preferred, the reader can be mounted underneath using adapter brackets.
Passage Speed: Maximum 97 passages/min; nominal value 45 people/min.
Power Supply: 100–240 V (AC)
Operating Voltage: 24 V (AC)
Power Consumption: 3.8 W during passage, 4.1 W in standby
Frequency: 50–60 Hz
Operating Temperature: –25 to +70 °C
Dimensions (excluding arms): 1000 × 220 × 980 mm
