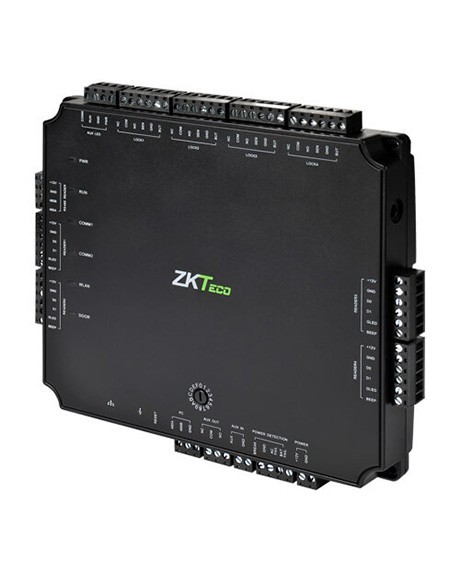

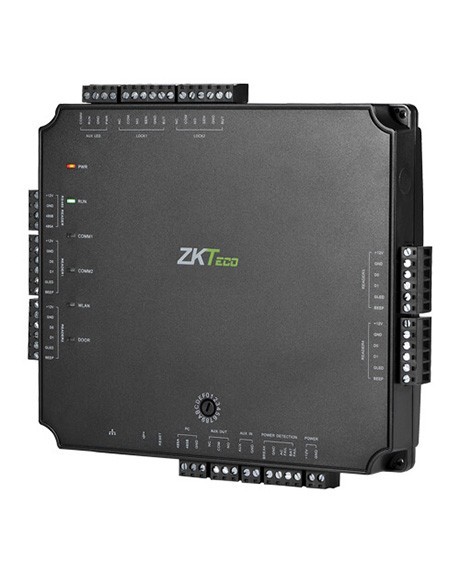

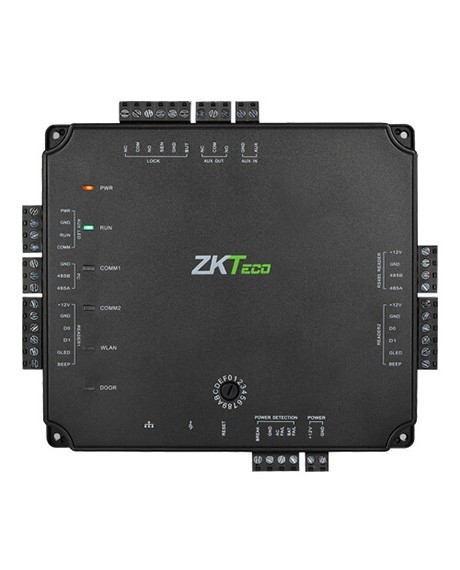

ZKTeco Atlas Prox Series door access control panels

PRODUCT CODE: Atlas Prox

The integrated web application eliminates the need for separate management software for state-of-the-art 1, 2, and 4-door access control panels.

	Atlas-100	Atlas-200	Atlas-400
Number of Supported Doors	1 Door	2 Doors	4 Doors
Number of Supported Readers	2 (Wiegand or OSDP Readers)	4 (Wiegand or OSDP Readers)	8 (Wiegand or OSDP readers)
Supported Reader Types	ZKTeco KR Series readers and Third-party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers	ZKTeco KR Series readers and Third-party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers	ZKTeco KR Series readers and Third-party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
Number of Entries	3 (1 Exit Button, 1 Door Sensor, 1 Aux)	5 (2 Exit Buttons, 2 Door Sensors, 1 Aux)	9 (4 Exit Buttons, 4 Door Sensors, 1 Aux
Exit Numbers	2 (1 Form C relay and 1 Form C relay for locking Aux output)	3 (2 Form C relays, 1 Form C relay for Aux output)	5 (4 Form C locks and 1 Form C relay for Aux output)
User Capacity	5,000	5,000	5,000
Event Database Capacity	10,000 transactions plus unlimited archive downloads.	10,000 transactions plus unlimited archive downloads.	10,000 transactions plus unlimited archive downloads.
Weight	9 lbs (3.8 kg)	10 lbs (4 kg)	10 lbs (4 kg)
Communication	TCP/IP, Wi-Fi, Wiegand, OSDP	TCP/IP, Wi-Fi, Wiegand, OSDP	TCP/IP, Wi-Fi, Wiegand, OSDP
Supported Browser	Chrome, Firefox, Edge	Chrome, Firefox, Edge	Chrome, Firefox, Edge
Covering	Powder-coated aluminum	Powder-coated aluminum	Powder-coated aluminum
Assembly	To the wall	To the wall	To the wall
Recommended Power Supply	12V DC, 3A (PoE)	12V DC, 3A (PoE)	12V DC, 3A (PoE)
Dimensions (Bundle Only)	14 in. x 2.5 in. x 12 in. 380mm(L) X 80mm(W) X 280mm(H)	14 in. x 2.5 in. x 12 in. 380mm(L) X 80mm(W) X 280mm(H)	14 in. x 2.5 in. x 12 in. 380mm(L) X 80mm(W) X 280mm(H)
Dimensions (Board only)	6.3in. x 4.17in. (160mmX140mm)	7.75in. x 6.73in. (197mmX171mm)	7.75in X 6.73in. (197mmX171mm)
