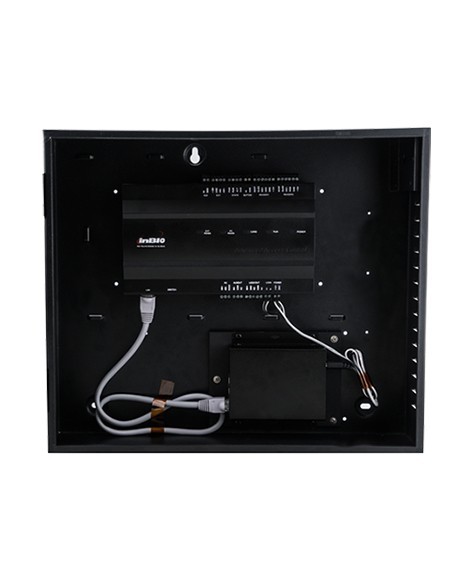

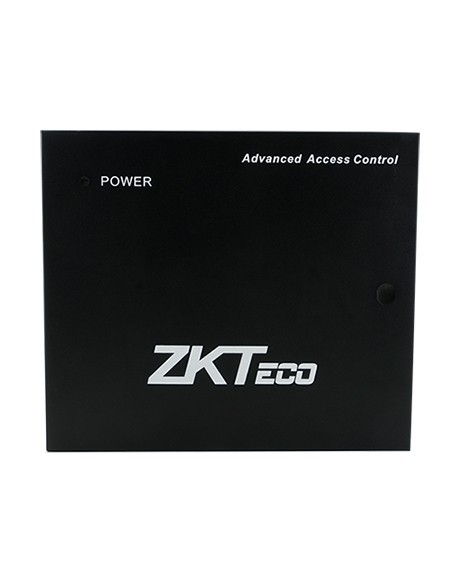

ZKTeco inBio160 POE Bundle IP-based biometric door access control

Technical indicators

User Capacity 30,000

Fingerprint Capacity 3000

Processing Capacity 100,000

Communication RS485, Ethernet

Nominal Voltage 12v

Standby Current Current 50mA

Operating Environment Temperature 0°C~ 45°C

Operating Environment Humidity 20%~80%

Number of Doors Monitored One Door

Number of Readers Supported 2

 Aux. Introduction 1

 Aux. Output 1

Supported Reader Types 26-bit Wiegand, others on request

Number of Inputs 2 (Output Device and Door Status)

Number of Outputs 2 (1 Form C relay for lock and 1 Form C relay for Aux output)

2 (1 Form C relay for lock and 1 Form C relay for Aux output)

Weight 3.35 kg

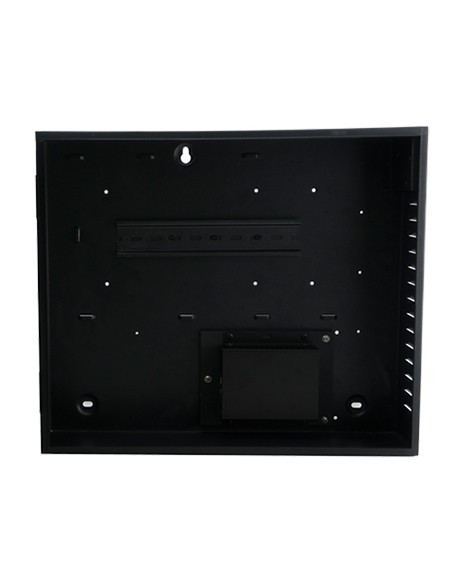

Dimensions (Case Only) 305.2 mm × 298.4 mm × 89 mm

Dimensions (Card Only) 183mm×106mm

POE Specifications

 Maximum Power15.4W (IEEE 802.3af)；25.5W (IEEE 802.3at)

Input Voltage 36-57V

Output Voltage 12V

Mains Standard

IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control, IEEE802.3af/ IEEE802.3at

Operating Environment Temperature 0°C ~ 45°C

Interface Protection

IEC61000-4-2 (ESD) requires ± 15KV (air), ± 8KV (contact), can withstand 8/20us 24A (12A) power

Input one input RJ45 interface

Output one output RJ45 connector and one DC output interface

Data transmission standard 10/100/1000 Mbit/s

Maximum Transmission Distance 100 meters
